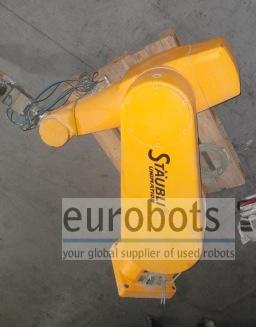

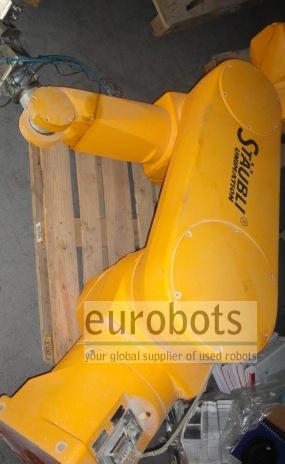

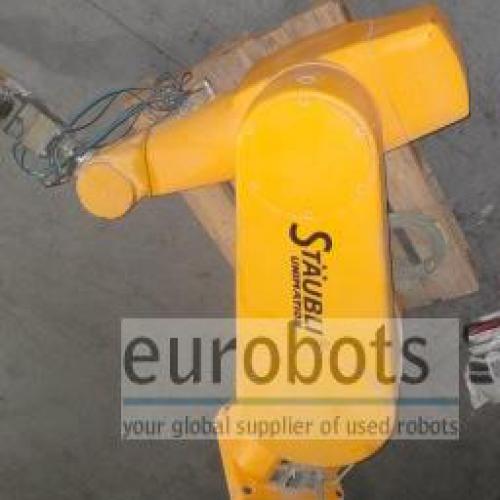

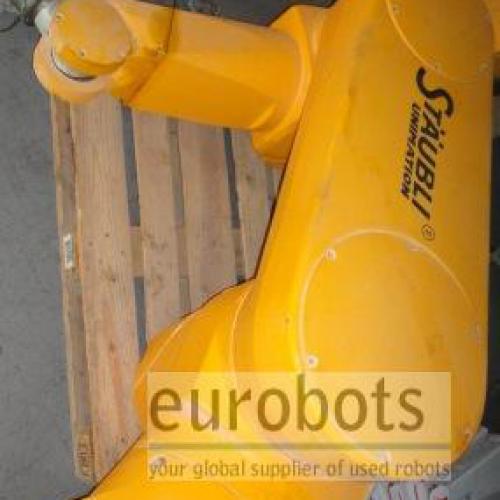

Other Robots Staubli RX170B High Precision control CS8

Awaiting more stock

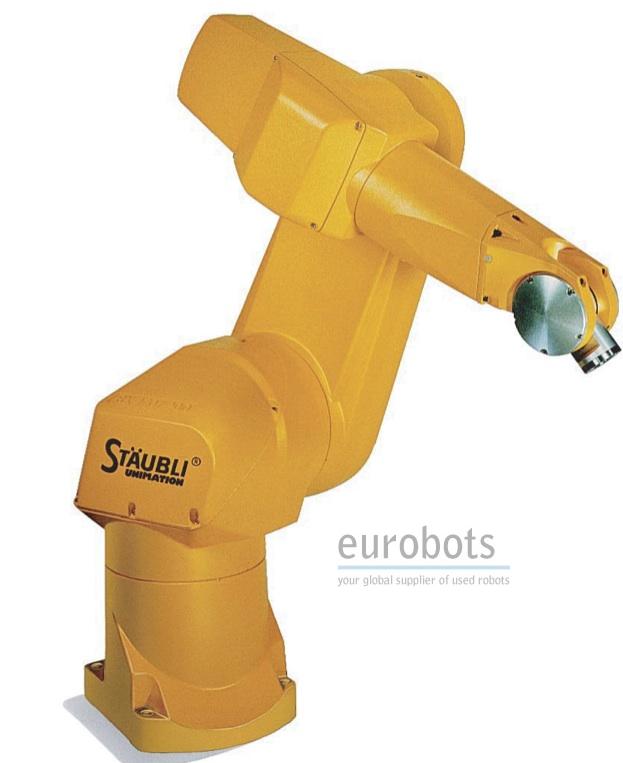

Year 2005. High precision 6 axis robot, medium payload. Fast and accurate.
Suitable for short cycle applications such as handling or loading-unloading of parts from a injection machine for example. Due to its high accuracy (0,04 mm), it can also be used for machining applications.

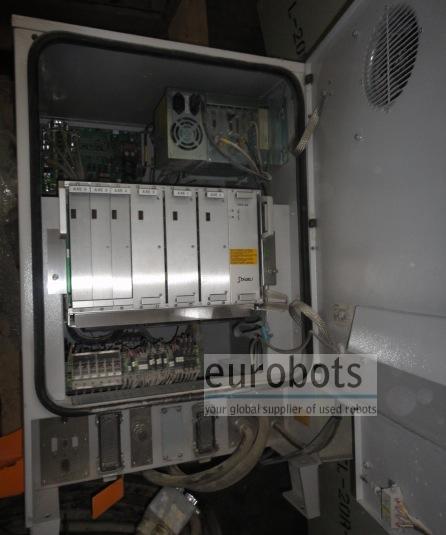

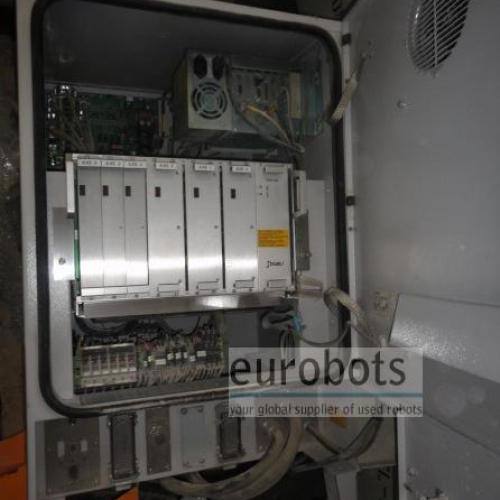

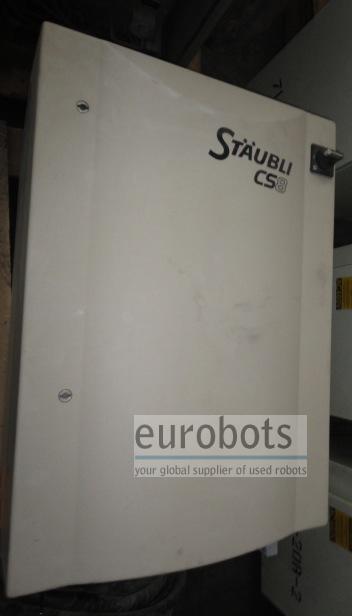

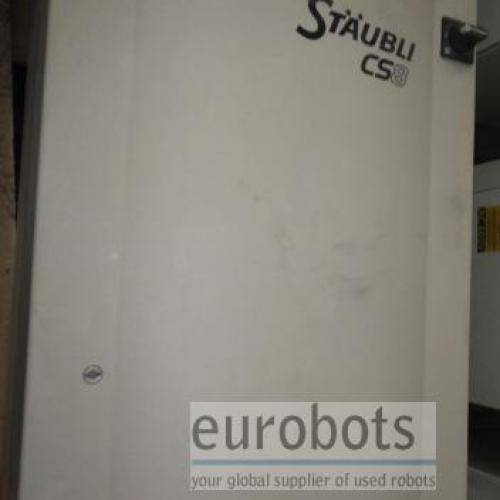

CS8 controller features

Benefits

  • Ethernet, field bus, digital inputs/outputs, serial connections
  • Open architecture
  • Easy to install anywhere
  • IP54 industrial version
  • Compactness
  • All connections on front panel
  • Accessibility
  • 100 % digital technology

General features

  • Dimensions: H x L x D: 1000 x 600 x 715 mm
  • Protection class: IP54
  • Memory capacity: 64 MB RAM ( min.)
  • Memory storage: 64 MB (min.) Flash Disk
  • System/ Programming language: VAL 3 (multitask interpreted language)
  • PLC-IEC 61131-3 language
  • Communication: RS232/422 serial link - Ethernet Modbus server
  • Inputs / Outputs (I/O): 16/16 digital inputs/ outputs and/or 32/32 digital inputs/outputs, optional
  • Field bus: DeviceNet, Profibus, CANopen, Modbus

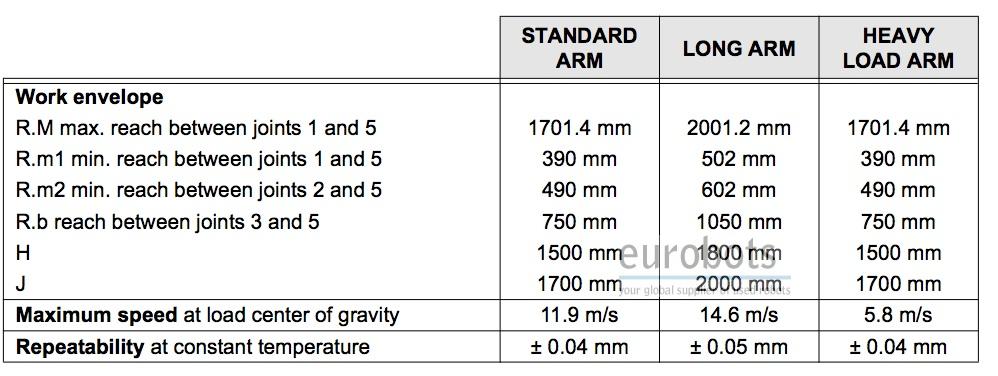

General technical specifications

  • Payload: 30 Kg
  • Max. arm reach: 1835 mm
  • Accuracy in repetition: 0,04 mm
  • Control: CS8

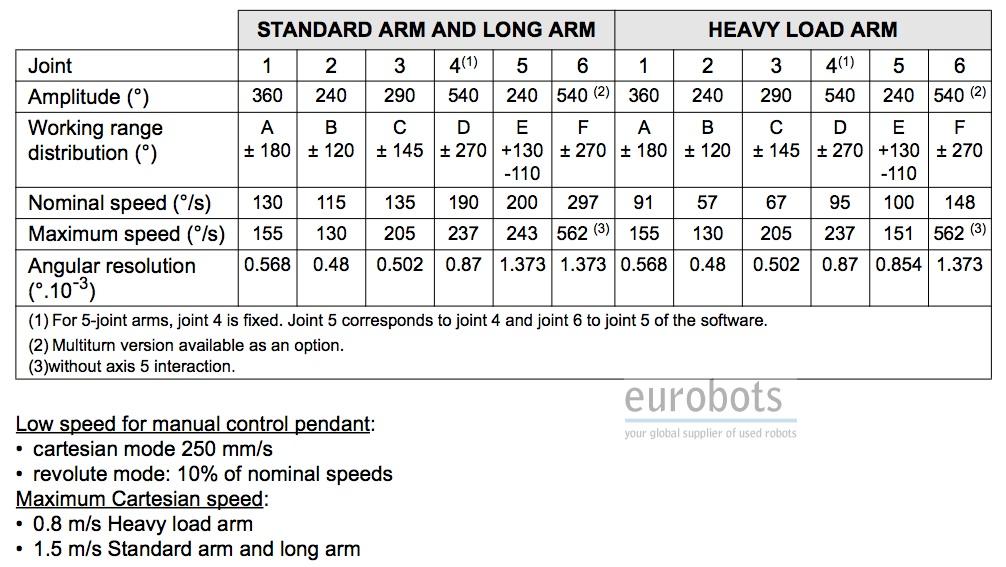

Robot Motion Speed

  • Axis 1: 155º/s
  • Axis 2: 130º/s
  • Axis 3: 205º/s
  • Axis 4: 237º/s
  • Axis 5: 243º/s
  • Axis 6: 562º/s

Applications

Lắp ráp các bộ phận , Đánh bóng , Xử lý các bộ phận , Gia công , Bốc xếp các bộ phận , Palletising

Videos

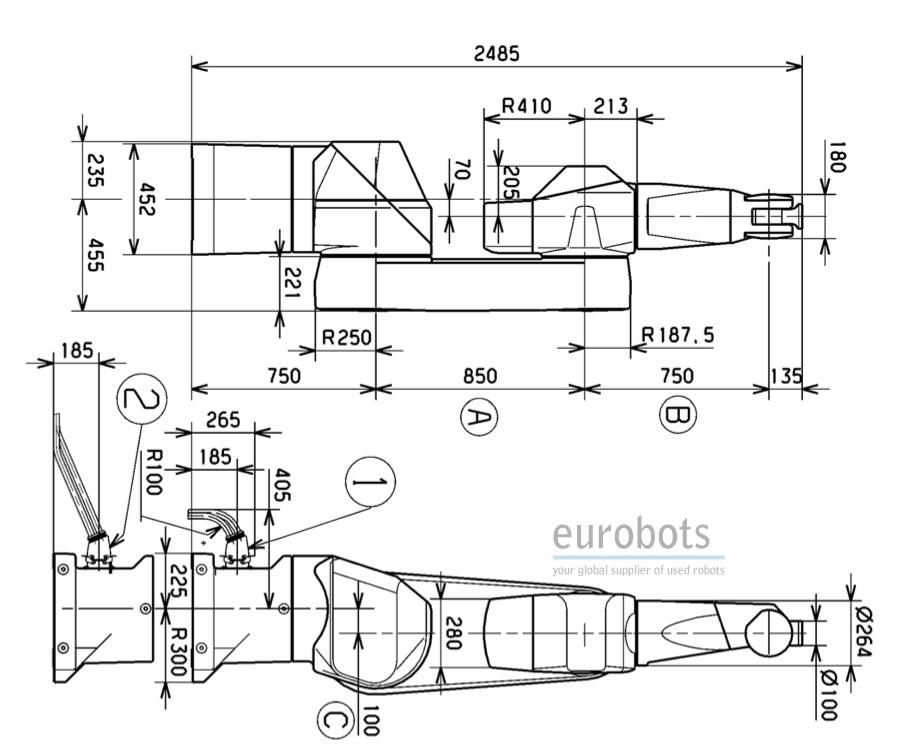

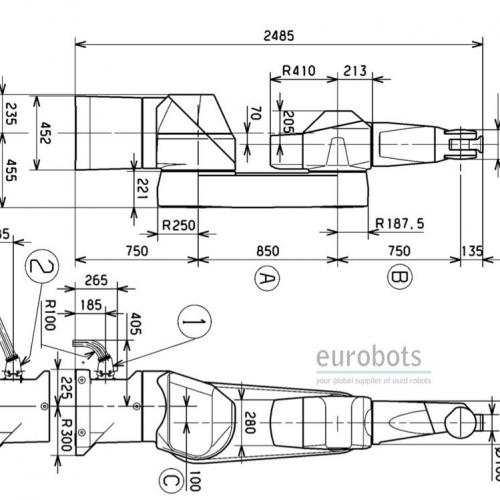

Diagrams
